Loading a System CMOS:

  • Updated

Installing a System CMOS or clone can be done following the steps below. What detailed below involves loading a "System File + CMOS" which contains all the files, parameters, applications, and user related files from the cloned system. It best to always perform the "System File + CMOS" to ensure all file are captured and installed on the TED unit. Procedures for both standard pendant and SmartPendant are both detailed below:

Loading "System File + CMOS" using Standard Pendant:

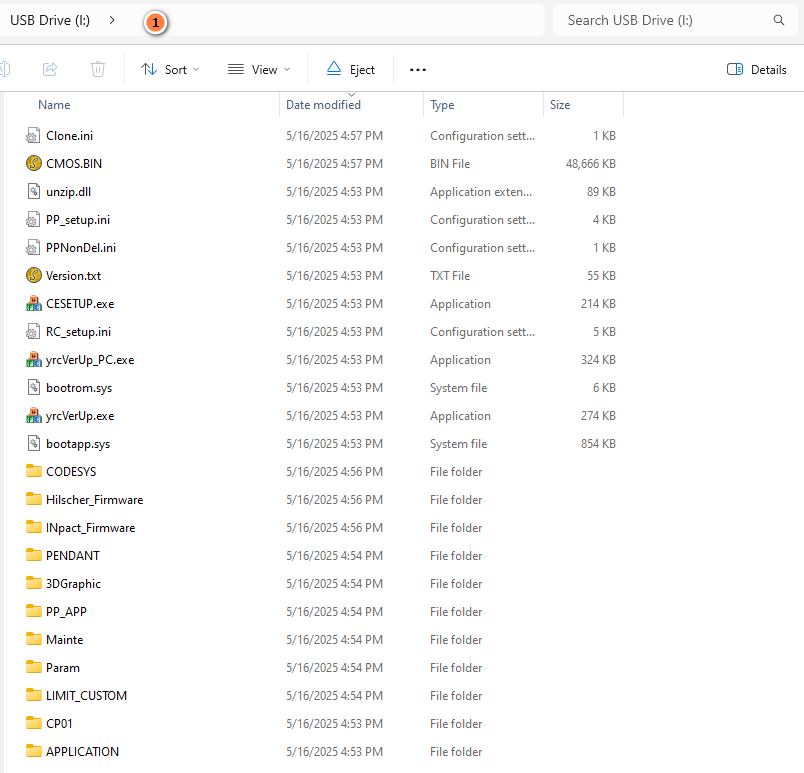

  1. The external drive containing the system backup should resemble the following with many of the following files:

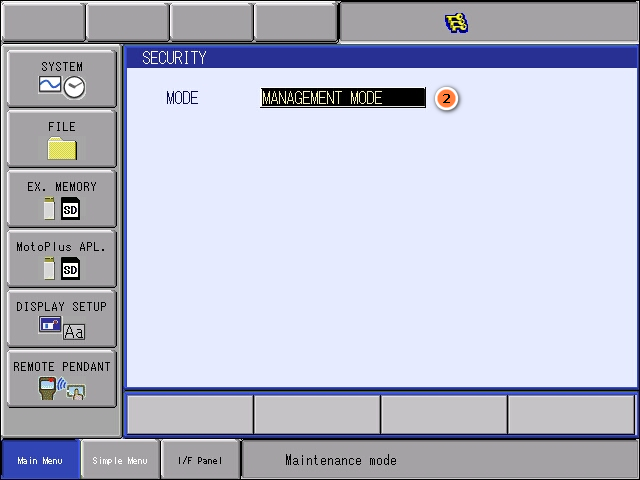

2.

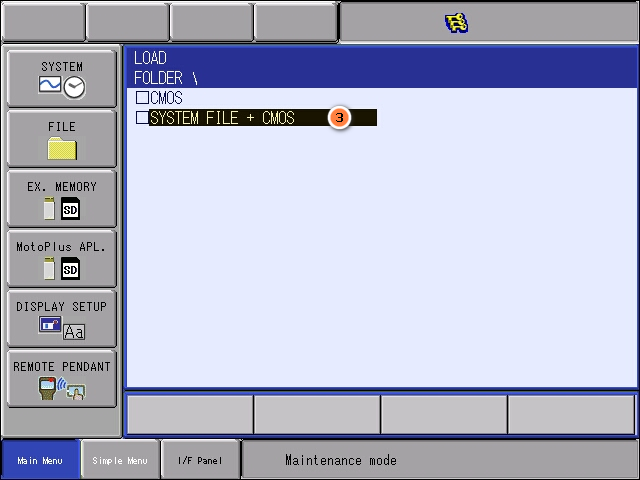

3.

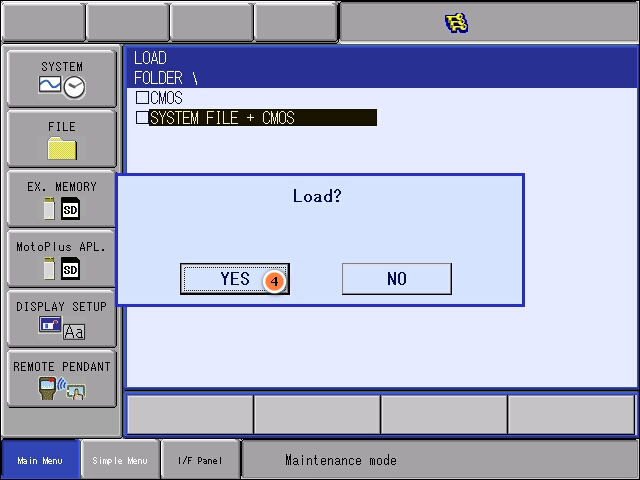

4.

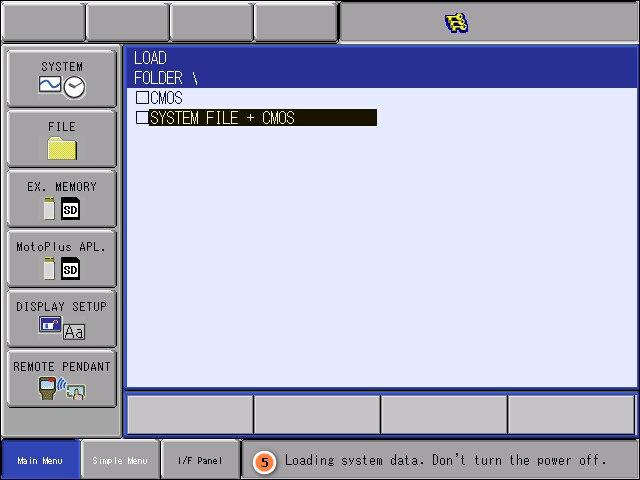

5.

6.

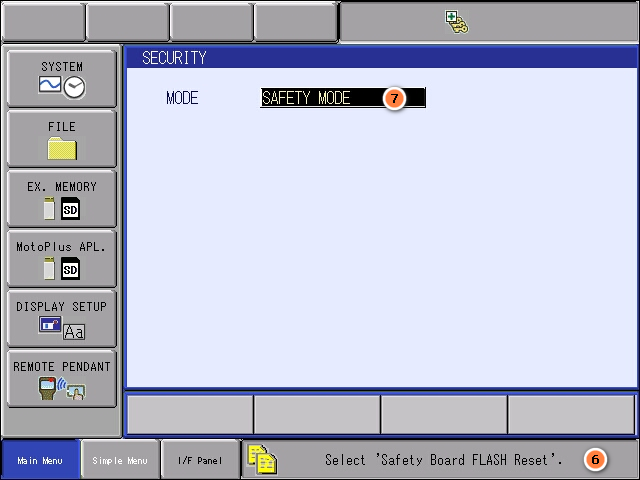

7.

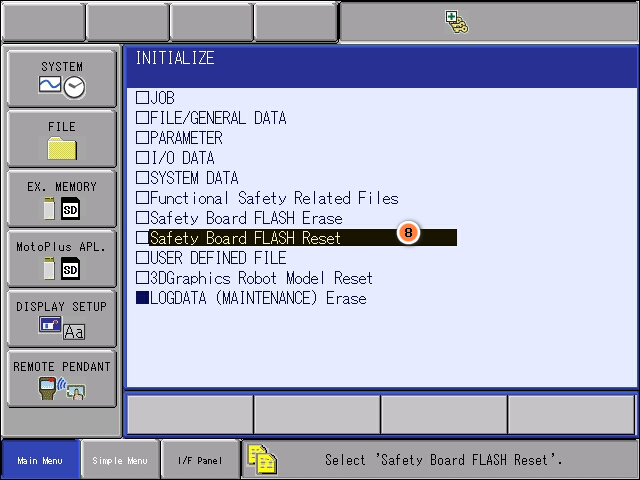

8.

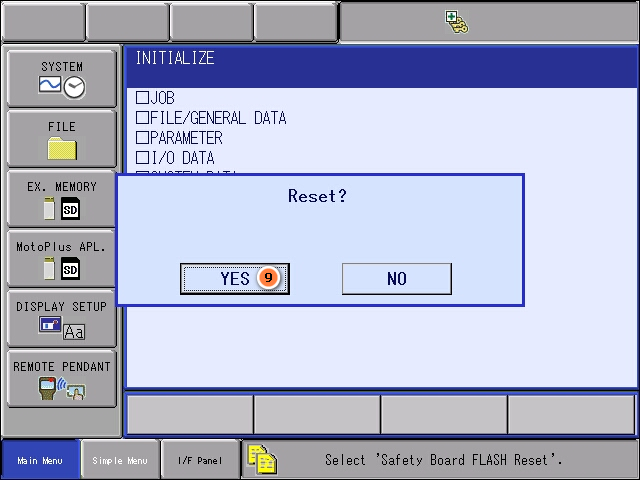

9.
